Product Description

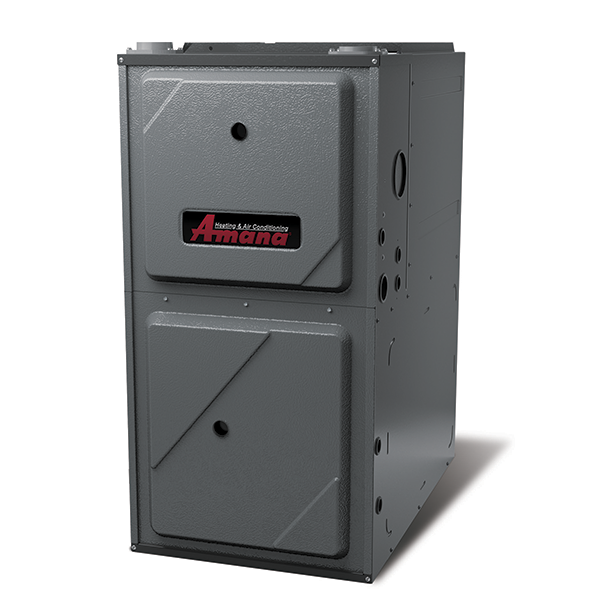

Two-stage, 80,000 BTU, 9-speed ECM, 1200 CFM, AM9C960803BN
Product Features
- 96% AFUE
- Heavy-Duty Stainless Heat Exchanger
- Energy-efficient, 9-speed ECM blower motor
- Durable silicon nitride igniter
- Two-stage gas valve
- Quiet, two-stage, induced-draft blower
- Self-diagnostic control board
- Heavy-gauge steel cabinet with durable finish
- Thermally insulated cabinet
Warranty Information
- 10-year warranty on all functional parts
- 2 years Labor warranty (with installation only)
- 10 years Labor warranty available for extra $400 (with installation only)
- Life-time unit replacement on heat exchanger **
** Amana will provide a new furnace to the original registered owner at no cost if the heat exchanger in this unit ever fails.
Furnace Installation Details
We offer a Free 30-minute at home consultation by an expert, licensed technician before making the purchase
Pre-Installation Procedure
- Prior to furnace installation:
- We calculate the furnace size
- We provide more details of the installation process
- We answer all your questions
Post-Installation Procedure
Furnace installation includes:
- Disconnect and disposal of the existing units
- Full installation by an expert licensed technician
- Replace the vent to PVC (up to 20 feet vent included any addition $10/feet)
- Put installation tag
- Collaborate the manifold pressure and air flow
Upgraded Installation (if required)
(efficient return boot and media air cleaner $450, based riser cabin $150)
A ductwork system is designed to distribute airflow from the furnace to your entire home and is sucked from the whole home into the furnace.
Most of the ducts connected to furnace and their filtration system need to be upgraded.
With upgraded installation, we perform the following additional procedures:
1) Install an efficient return boot elbow with turning vane
Turning vanes are designed to be installed in the return boot elbow to reduce resistance and turbulence to the flow of air. The air is guided by the vanes, helping it change the direction easily
2) Install media air cleaner (filter) MERV 11
Maximizes the filtration and makes house healthier
Maximizes the air flow through filter
16×25×5 (up to 1400 cfm) for 40k and 60k BTU furnace
20×25×5 (up to 2000 cfm) for 80K,100K, and 120K BTU furnace
3) Install furnace base riser cabin for 80k BTU and up (AMP- BSRB)
Furnace base riser increases air flow by allowing air return to the furnace from the side and bottom.
